FIS 60MM WASTEGATE KIT (SOLD OUT)
60mm gate kit, includes all hardware seen in pictures. Detailed description below

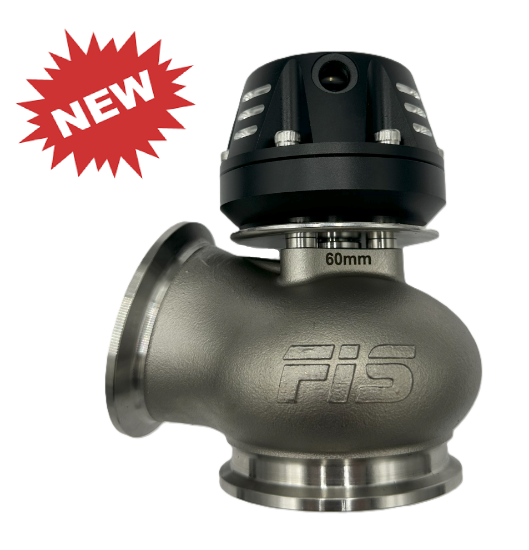

Our new FIS 60mm external wastegate is built for serious performance and reliability. Precision cast from high-grade stainless steel, it’s engineered to handle extreme heat and pressure without compromise. Each unit includes all necessary hardware and features our signature quick-release clamps — intentionally overbuilt to ensure a secure, leak-free seal under high-boost conditions.
At the top, a CNC-machined billet cap is anodized in black and features integrated cooling channels to keep internal temperatures in check. The cap is finished with a clean machined FIS logo for a high-end, professional appearance. A clearly labeled size marking on the exterior makes identification easy.
Designed for maximum durability, the gate also includes a thicker heat shield to protect internal components from thermal damage. It comes with two ⅛" NPT ports on the cap and one ⅛" NPT port below the cap, giving you flexible routing options for boost control lines. Block-off fittings and nipples are included to support multiple configurations.
Each Unit also includes all V band flanges needed for welding for the hot side of the exhaust system.
Each unit ships with four interchangeable springs, allowing you to select a base pressure range from 3 PSI to 24 PSI.
Note: Base pressure is the minimum pressure at which the wastegate begins to open. It does not equal total boost pressure — actual boost can exceed base pressure when using a boost controller.
Whether you're street tuning or track racing, the FIS 60mm wastegate provides rock-solid performance, precise control, and a premium finish that sets your build apart.
